l Main Function
1. Measuring of directional parameters, deviation angle, azimuth, and tool face orientation etc is the basic function of ZT-DGWD.
2. Application of natural gamma ray logging:
Lithologic identification: rock stratums are identified with different gamma values.Estimation of shale content: Gamma values are used for estimation of shale content.
Stratigraphic correlation: subsurface geology situation of oilfield or a block, i.e. vertical and horizontal layout of heavy layer and lithology.
can be obtained through correlation of gamma values of many wells to facilitate further investigation into subsurface structure, lithic facies.

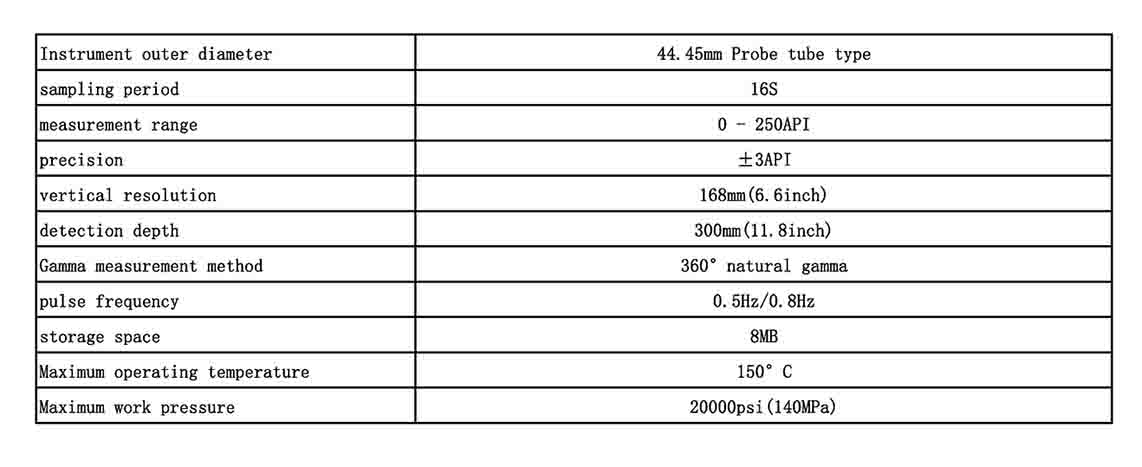

Parameter |
Data |
Measurement range |
250 API |
Measurement accuracy |
±3API(0~150API) |
Minimum sampling period |
8s |
Vertical resolution |
168mm(6.6inch) |
Working temperature |
150℃ |
Working pressure |
18000psi |
Overall length of instrument (inclusive of the part for directional measurement) |
3.8 m |
Diameter of instrument |
44.45 mm |
